WHAT’S NEW WITH THE VERSION 3 STEERING RACK?
NEW case seal design for reduced maintenance and internal component protection
Increased load capacity by designing a wider linear gear to distribute the load over a larger surface area creating less wear for longer life.
Still the lightest steering rack on the market while maintaining the external case dimensions making it an easy bolt-in upgrade.
The JOES brand new case seal design closes off 95% of the bottom rack, drastically reducing the amount of dirt and other particles that get inside the rack itself. With new seals, your rack will last longer, require less grease and decrease required maintenance. In the end, this rack is smooth, strong, lightweight, serviceable and easy to maintain.

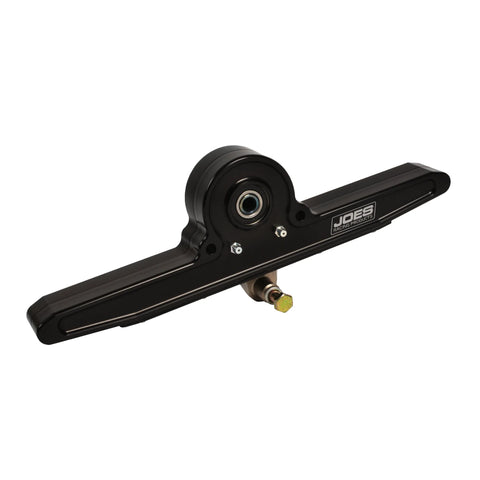

Designed, developed and machined completely in house, the JOES Formula 500 Steering Rack is smooth, strong, lightweight and serviceable. It will provide consistent driver feedback with years of trouble free service in racing conditions.
The JOES rack starts out with a 6061-T6 Aluminium body, a lightweight Aluminium rack, hardened and plated steel heim bracket, and full ball bearing control. The heim bracket also features the only replaceable design on the market. We are confident that our heat-treated bracket will not bend, but if it does, you can always get a replacement tab directly from us and replace it yourself instead of buying a whole new Steering Rack. Two grease zerks on the outside of the rack make routine maintenance quick and easy and the rack can be completely disassembled for a complete deep clean in minutes.
Overall Length – 14 1/8″
Thickness – 1 5/8″
Mounting Holes – 3″ apart, center to center.
Fits: JOES Chassis, Apex, Lynk, Royal, B&B, D1, TenJ, Pace, PMP & Edge
XXX Chassis – This box fits dimensionally, but due to Triple X using a metric splined lower shaft, you’ll need to use JOES Manual Steering or JOES Power Steering for complete system compatibility.
V3 SPECS:
RATIO: 12:1
TRAVEL: 6½”
WEIGHT: 2.9lbs

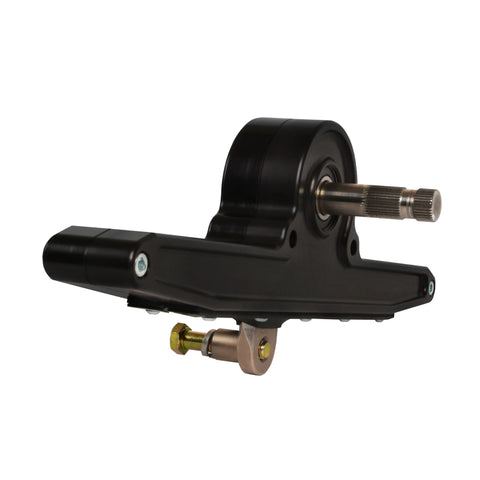

INPUT SHAFT SPLINE: ⅝”-36 (USE SWE401-50607 U Joint)
INPUT SHAFT MATERIAL: 4130 solid Chromoly
RACK MATERIAL: Lightweight Aluminum

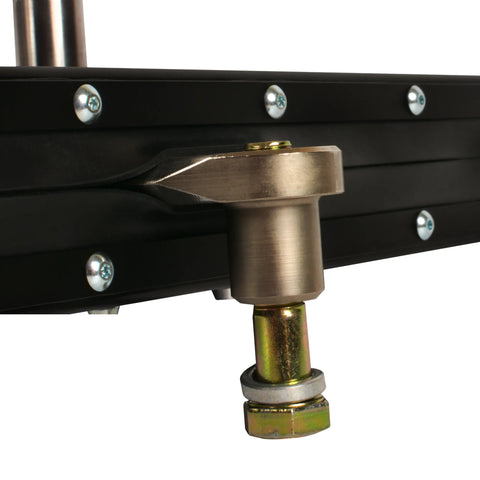

HEIM BRACKET: Hardened, Plated and Replaceable
DRAG LINK SPUD: Threaded and built in to Heim Bracket
SERVICEABLE: Two grease zerks for rack gears
100% designed, machined and assembled in USA at JOES Racing
