BHR Sprint Car 6 Point Tail Tank Mounting Bracket & Clevis Kit

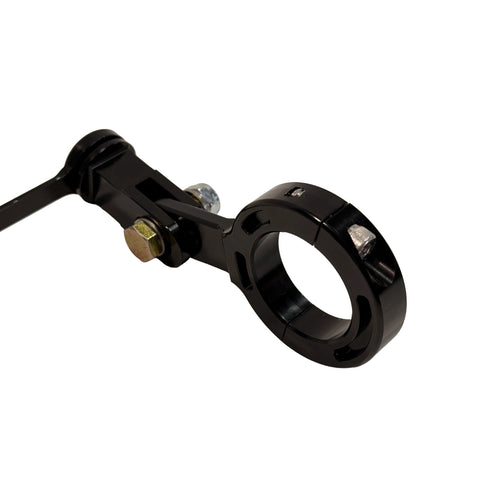

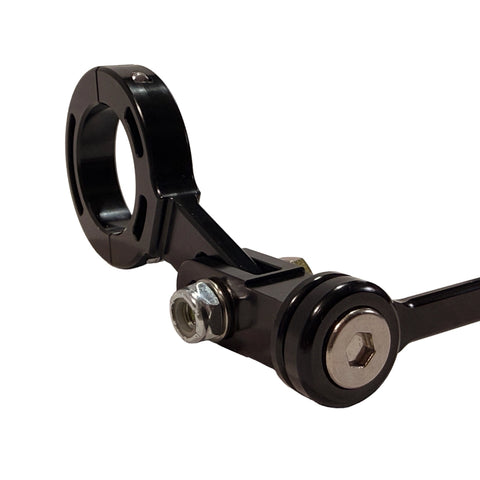

Internal bracket and (2) clevis's for the 6-Point Tail Tank mounting system. Complete with grade 8 bolts.

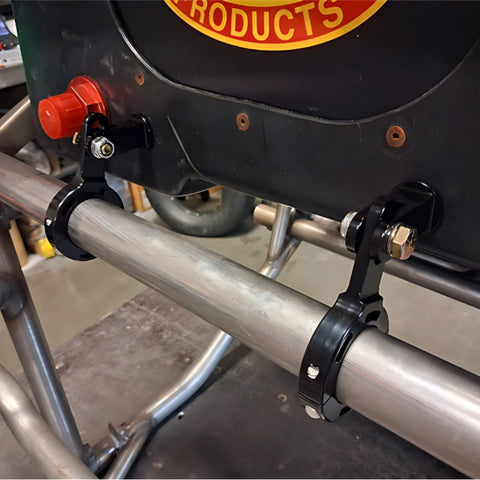

The "dogbone" bracket goes inside the tank (with the captured bolts sticking out). The (two) clevis's screw onto the bolts sandwiching the tank. The clevis's are then attached to the chassis via two clamps or two weld on brackets.

To install; Simply remove the tank stuffing plate, push the bladder back, drill two 5/16" holes, and insert the bracket. Release the bladder and re-install the tank stuffing plate. Screw on the 2 clevis brackets until finger tight. Tighten the clevis's until they are pointing vertical (up and down).

Drill Pattern: 8" on center
